Aluminium Composite Panel (ACP)

Model: Composite Panel
Panel width: 1000mm, 1220mm, 1250mm, 1500mm, 1575mm, 2000mm or customized widths.
Panel length: 2440mm, 3200mm, 4880mm, 5800mm or cut to size
Panel thickness: 3mm, 4mm, 5mm, 6mm, up to 15mm
Aluminium skin thickness: 0.12mm, 0.15mm, 0.2mm, 0.3mm, 0.4mm, 0.5mm
Alloy: AA1100, AA3003, AA5005
Core: LDPE core (Low density Polyethyelene), FR B1 core, FR A2 core
Coating: PVDF, FEVE, PE, Anodized etc
Product Description

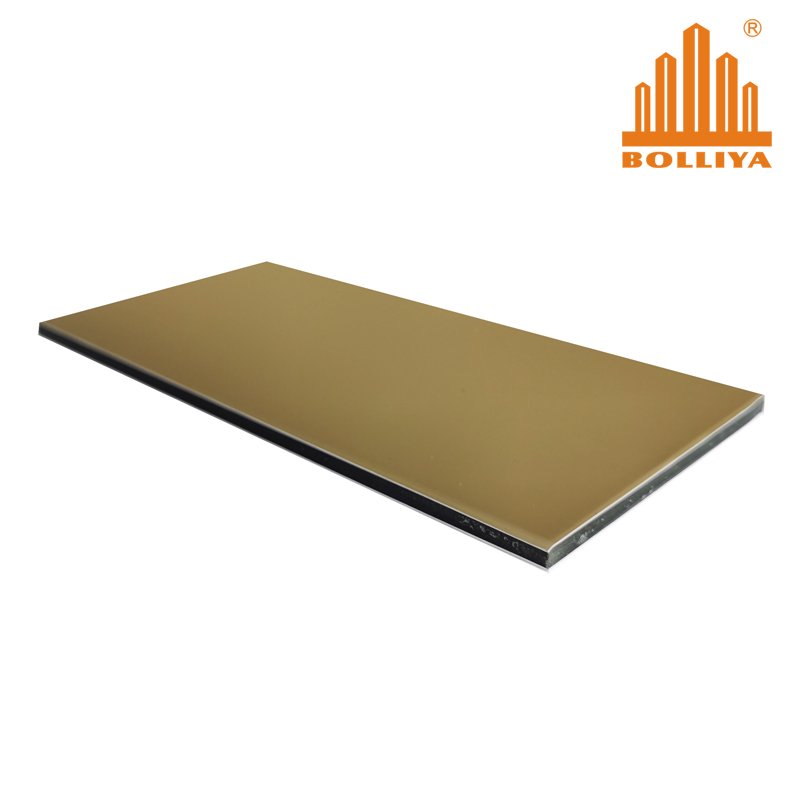

Bolliya Aluminium Composite Panel (ACP)

What is Bolliya Aluminium Composite Panel  (ACP)?

Bolliya Aluminium Composite Panel (ACP) is a sandwich panel composed of two sheets of aluminium bonded to a LDPE core or FR core, through a continuous extruding and thermal laminating process. The surface of aluminium sheet is pre-painted with PVDF or PE coating through roller coating process. Making the aluminium with a plastic based core is to lower the product cost and weight but meanwhile to enhance the product rigidity and flatness, making it a very economic and handy product to work with. Aluminium composite panel (ACP) has been existing in the market for more than 50 years and being widely used and well accepted worldwide.

Features of Bolliya Aluminium Composite Panel (ACP):

1. Lightweight. Comparing to solid aluminium panels at same thickness, the weight of composite panel is 40% lighter.

2. Smooth surface and consistent color within one batch. Composite panel is made with pre-painted roller coating coils, the coating is smooth and color is consistent, while aluminium solid panel is powder coated with a rough surface and color deviation within one batch might be more obvious.

3. Lots of color to make it easy to design a good looking building facade.

4. Easy to fabricate and install at job site, it can be cut and drill, grooved, bent, no need to pre-fabricated at manufacturer's mill.

5. Fireproof. FR B1 is becoming more and more commonly used, and FR A2 grade is created to meet some building which requires a much higher fire safety demand.

Color Series of Bolliya Aluminium Composite Panel (ACP):

Bolliya Aluminium composite panel is available in many different colors and patterns, including special colors of wood pattern, stone pattern, corten steel look, copper patina look, bi-color etc.

Aluminium Composite Panel colors

Applications of Aluminium Composite Panel (ACP):

1. It's used for facade cladding of high-rise buildings, airports, stadiums, hotels, shopping malls, train stations etc. ACP with PVDF coating and FR core is recommended for such application.

2. ACP is also used for interior wall decoration, partitions. ACP with PE coating (either single sided or two sided colors) with a LDPE core is recommended for this application.

3. Signboard. 2mm thick or 3mm thick ACP with glossy or matte colors are recommended, and generally white colors with digital printable surface are mostly demanded.

4. Furniture, transportation industry for manufacturing van, boat etc.

How about the Bolliya FR Aluminium Composite Panel (ACP):

It is a trend to use more and more FR Aluminium Composite Panel, as we can see new building code stating clearing for cladding materials to be fire retardant, in countries such as UAE, Australia, Singapore, Malaysia, Europe, UK, USA, Canada etc. Bolliya is good at making FR aluminium composite panels, no matter FR B1 grade or FR A2 grade aluminium composite panel.

Our FR B1 Aluminium composite panel complies with:

EN13501-1 B s1 d0

BS476 part 6&7 class O

ASTM E84 Class A

French M1


ASTM-E119 2hours fire rating.

Our FR A2 Aluminium composite panel complies with:

EN13501-1 A2 s1 d0 deemed as non-combustible.

BS476 part 4 deemed as non-combustible.

Why choose Aluminium Composite Panel (ACP) from Bolliya?

1. Bolliya has rich manufacturing and exportation experience of aluminium composite panels since year 1997, you can expect good service from us.

2. We have brand new latest 3rd direct bonding lamination technology composite lamination line, with fast lamination speed and superb lamination strength and panel flatness. Excellent product quality and reasonable price are what you can expect from us.

3. Full product ranges for metal composite cladding materials but not just aluminium composite panel, including: copper composite panel, stainless steel composite panel, stainless steel composite panel, aluminium honeycomb panel, double sheets aluminium panels etc to meet different requirements.

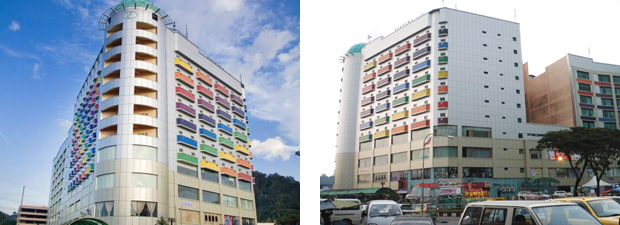

Bolliya Aluminium Composite Panel (ACP) Project:

Purnama Hotel, Limbang Plaza, Malaysia

aluminium composite panel project
