|Panel width：||1000mm, 1200mm, or customized widths.|
|Panel length：||2440mm, 3200mm, 4880mm, 5800mm or cut to size|
1mm, 1.5mm, 2mm, 2.5mm 3mm
|Stainless steel skin thickness：||
0.3mm, 0.4mm, 0.5mm

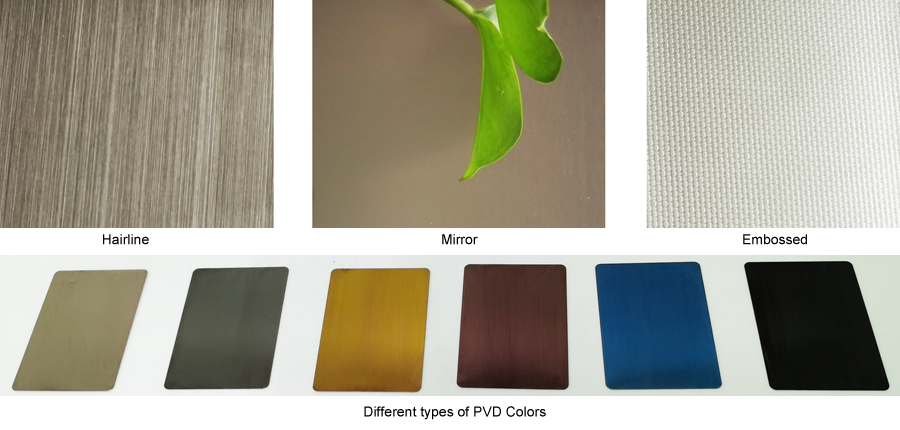

|Finishes：||Hairline, Mirror, Embossed Patterns etc|
|Fire Reaction：||FR Class A2|

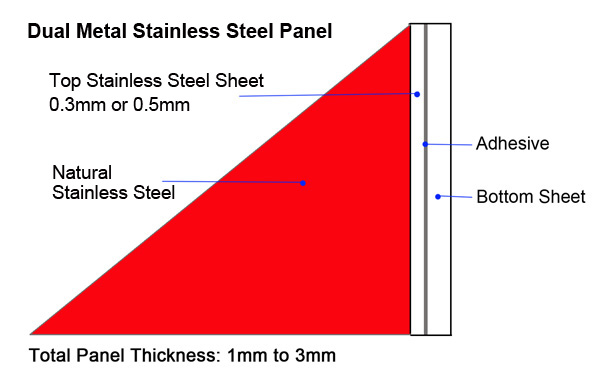

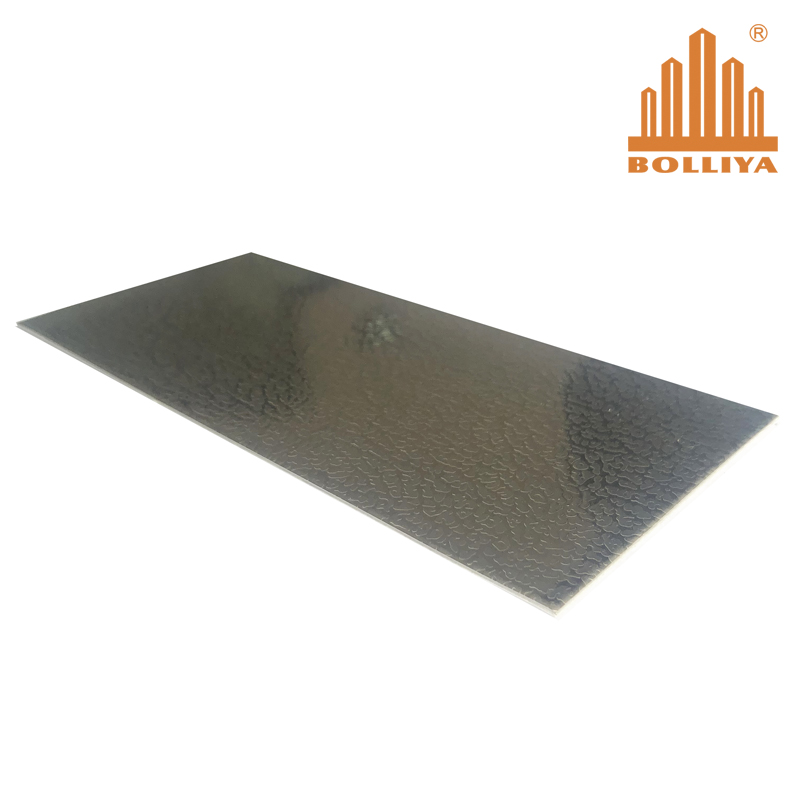

Bolliya Dual Metal Stainless Steel Aluminium Panel is composed of one stainless steel sheet laminated to aluminium sheet or galvanized steel sheet as substrate, bonded by adhesive film and laminated through a continuous thermal lamination process.
Total Panel Thickness: From 1mm to 3mm. Recommended Thickness for facade cladding is 2mm, 2.5mm and 3mm.
Top skin: 0.3mm, 0.4mm, 0.5mm.
Bottom skin: Aluminium or steel sheet at required thickness to achieve the nominated total panel thickness.
Panel width: 1000mm, 1200mm.
Panel length: 2440mm or cut to size.
Colors and Patterns of Dual Metal Stainless Steel Aluminium Panel

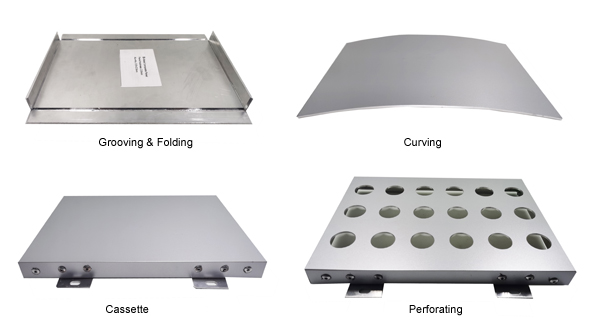

1. Dual Metal Stainless Steel Aluminium Panel is easier to fabricate at job site, just same like ACP. It can be cut, grooved and fold easily at job site, very flexible to work with.
2. Dual Metal Stainless Steel Aluminium Panel is cheaper than solid stainless steel panel.
3. Dual Metal Stainless Steel Aluminium Panel has a better panel strength and flatness comparing to solid stainless steel at the same thickness.

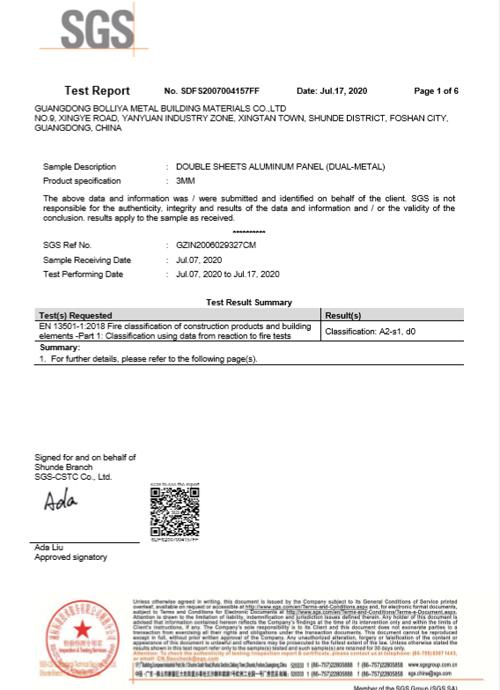

Dual Metal Stainless Steel Aluminium Panel is majorly used for facade cladding whereas a good wind resistance and high fire retardant property is required (it is classified under EN-13501-1, class A2-s1,d0), such as high rise buildings, hotels, hospitals, shopping malls, airports, stadiums, train stations etc.
BOLLIYA, makes your architectural dream come true…
