|Panel width：||1000mm, 1220mm, 1250mm, 1500mm, 1575mm, 2000mm or customized widths.|
|Panel length：||2440mm, 3200mm, 4880mm, 5800mm or cut to size|
3mm, 4mm, 5mm, 6mm, up to 10mm
|Aluminium skin thickness：||
0.2mm, 0.3mm, 0.4mm, 0.5mm
AA1100, AA3003, AA5005
FR A2 (EN13501-1), Non combustible (BS476 Part 4)
|Coating：||PVDF, FEVE, PE, Anodized etc|

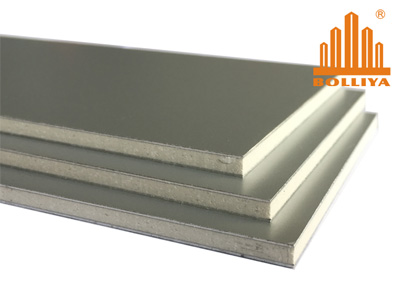

Bolliya A2 FR Aluminium Composite Panel is sandwich panel that is made with a mineral filled fire retardant core, that contains more than 90% of non combustible material, and laminated to two sheets of aluminium. A2 FR Aluminium Composite Panel meets the highest noncombustible grade that composite material can reach at the moment. And Bolliya A2 FR Aluminium composite still keeps the other general properties that normal aluminium composite has, such as: different colors and finishes available, lighter comparing to same thickness of solid aluminium panel, easy fabrication and easy installation, good panel flatness.

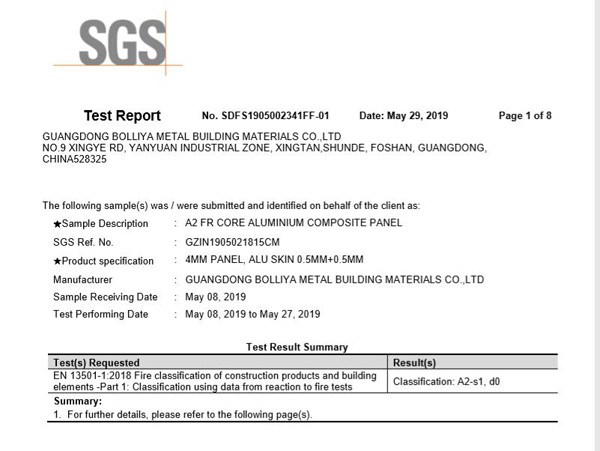

The Bolliya A2 FR Aluminium composite can meet EN13501-1 standard to be classified as A2-s1-d0, and BS476 standard part 4, compliance with either of these two standards means the composite panel is deemed as Non Combustible.
Panel thickness: 3mm 4mm and 6mm (other thickness please consult us)
Aluminium skin thickness: 0.2mm, 0.3mm, 0.4mm, 0.5mm
Alloy of aluminium skins: 1100, 3003, 5005 optional upon customer request
Core: Mineral filled fire retardant core, more than 90% mineral ingredients
Panel width: 1000mm, 1220mm, 1250mm, 1500mm, 1575mm up to 2000mm
Panel length: 2440mm, 3200mm, 4880mm, 5800mm or others cut to size
Coating: PVDF coating, FEVE coating or Polyester Coating
Bolliya A2 FR Aluminium composite panel is available in many different colors and patterns, including special colors of wood pattern, stone pattern, corten steel look, copper patina look, bi-color etc.
1. It's non combustible, it won't be ignited nor release any toxic smoke when there is fire accident. This would gives more time for people inside the building to evacuate from the building, it would reduce the numbers of wounded or casualties and minimize the economic loss.
2. It's lighter in weight when comparing to same thickness of aluminium solid panels. A 4mm thick FR A2 ACP is about 20% lighter than 4mm thick solid aluminium panel.
3. It's easy to fabricate A2 FR composite panel, just same way of fabrication and installation like normal composite panel. Most general CNC machines can cut, drill, groove the FR A2 ACP easily.
4. The surface is smooth and neat roller coating, color is consistent within same batch.
The Bolliya A2 FR Aluminium Composite Panel is majorly used for high rise building, shopping mall, metro stations, airport projects etc, at the places where high fire retardant standard has to be met.

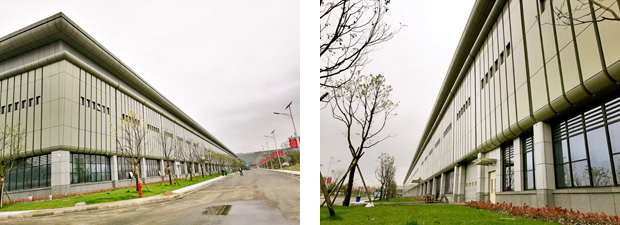

Ningbo Tobacco Factory
BOLLIYA, makes your architectural dream come true…
