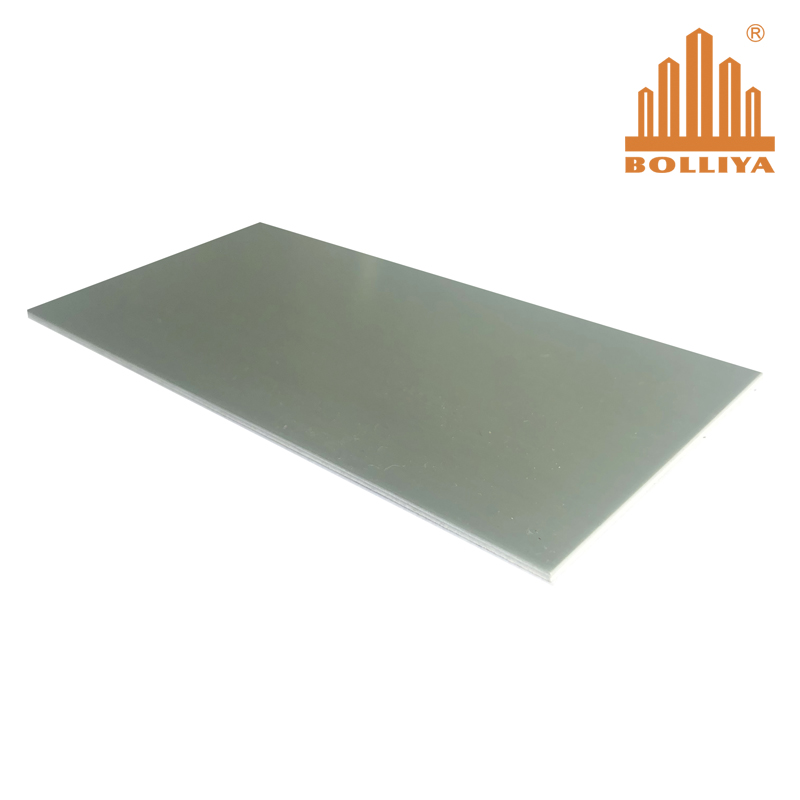

Dual Metal Titanium Zinc Aluminium Panel (Zn + AL)

Model: Dual Metal Panel
Panel width: 700mm, 1000mm, or customized widths.
Panel length: 2440mm, 3200mm, 4880mm, 5800mm or cut to size
Panel thickness: 1mm, 1.5mm, 2mm, 2.5mm 3mm
Titanium zinc skin thickness: 0.5mm, 0.7mm
Surface treatment: Preweathered
Color: Blue Grey, Graphite Grey
Fire Reaction: FR Class A2
Product Description
Download
Inquiry

Dual Metal Titanium Zinc Aluminium Panel

What is Dual Metal Titanium Zinc Aluminium Panel?

Bolliya Dual Metal Titanium Zinc Aluminium Panel is composed of one titanium zinc sheet laminated to an substrate of aluminium sheet,bonded by adhesive film and laminated through a continuous thermal lamination process. It's a composite panel that is complete free of the LDPE core or FR core like the traditional composite panel.

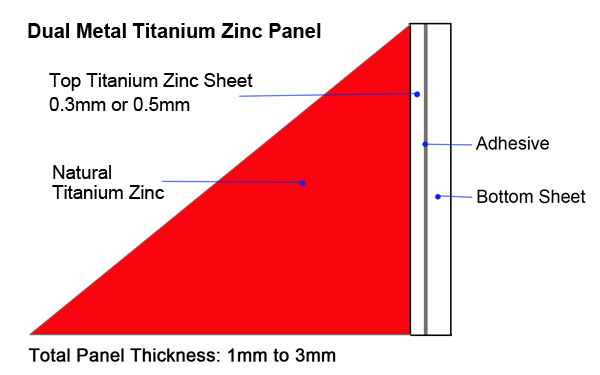

dual metal titanium zinc panel

Basic information of Dual Metal Titanium Zinc Aluminium Panel:

Total Panel Thickness: From 1mm to 3mm. Recommended Thickness for facade cladding is 2mm, 2.5mm and 3mm.

Top skin: 0.5mm or 0.7mm titanium zinc sheet.

Bottom skin: Aluminium sheet at required thickness to achieve the nominated total panel thickness.

Panel width: 700mm, 1000mm.

Panel length: 2440mm or cut to size.


How is Dual Metal Titanium Zinc Aluminium Panel in comparison of Solid Titanium Zinc Panel?

1.Dual Metal Titanium Zinc Aluminium Panel is easier to fabricate at job site, just same like ACP. It can be cut, grooved and fold easily at job site, very flexible to work with.

2.Dual Metal Titanium Zinc Aluminium Panel is much cheaper (at around 40%)when comparing to solid titanium zinc panel.

3.Dual Metal Titanium Zinc Aluminium Panel has a better panel strength and flatness comparing to solid titanium zinc panel at the same thickness.

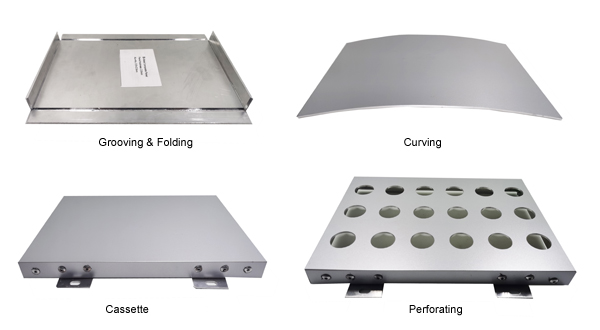

Fabrication of Dual Metal Titanium Zinc Aluminium Panel

Dual Metal Titanium Zinc Aluminium Panel


Applications of Dual Metal Titanium Zinc Aluminium Panel:

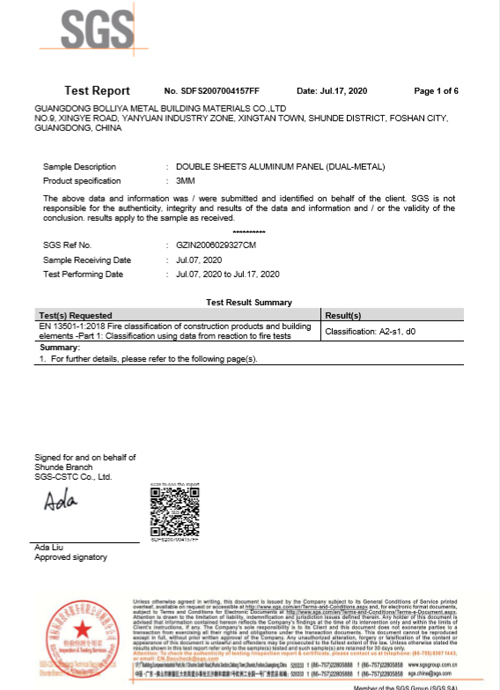

Dual Metal Titanium Zinc Aluminium Panel is majorly used for facade cladding whereas a good wind resistance and high fire retardant property is required (it is classified under EN-13501-1, class A2-s1,d0), such as high rise buildings, hotels, hospitals, shopping malls, airports, stadiums, train stations etc.
