Pure Titanium Composite Panel

Model: Pure Titanium Composite Panel
Panel width: 1200mm or customized widths.
Panel length: 2440mm, 3200mm, 4880mm, 5800mm or cut to size
Panel thickness: 3mm, 4mm, 5mm, 6mm
Titanium skin thickness: 0.4mm, 0.5mm
Alloy: Pure Titanium
Core: FR B1 core or FR A2 core
Finishes: Dull Finish
Product Description

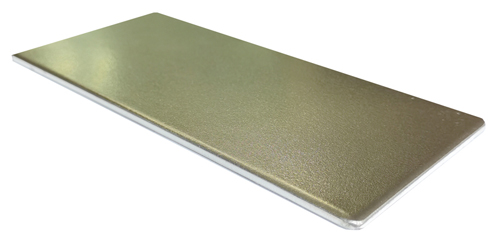

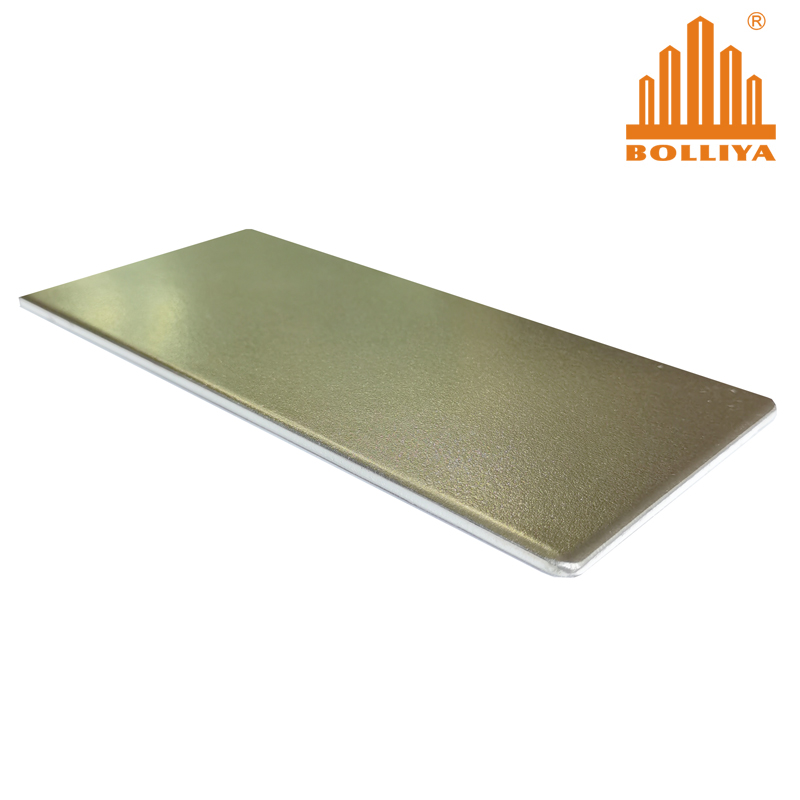

Bolliya Titanium Composite Panel

What is Titanium Composite Panel?

Bolliya Titanium composite panel is a sandwich panel composed of a titanium sheet as topside and a stainless steel sheet as backside bonded to a fire retardant mineral filled core. The overall panel thickness of titanium composite is 4mm, and titanium skin thickness is 0.3mm or 0.4mm.

titanium composite panel

Features of Titanium Composite Panel:

1. A 4mm composite is equivalent to a 3mm solid titanium sheet in rigidity but greatly the cost and the weight.

2. Titanium is light weighted material with a density of about 4.2g/cm3 which is just about half of the weight of stainless steel or copper, but the rigidity strength of titanium is the best among these metals. Because of its superb mechanical properties, it’s widely used for aero industry, machine industry even medical industry (for replacement of bone).

 3. Titanium metal quickly forms a stable oxide film (called passivated film) at room temperature and is known for its unparalleled anti corrosion feature. It’s one of the most idea material to be used for façade and roofing cladding especially in high corrosion area.

Specification of Bolliya Titanium Composite Panel:

Panel width: 1200mm

Panel length: 2400mm (or customized)

Panel thickness: 4mm

Topside skin: 0.3mm titanium (purity approx. 99.5% of titanium)

Backside skin: 0.3mm stainless steel (430 grade)

Core: Mineral filled fire retardant core

Weight: 9.3kgs/sq.m

Applications of Titanium Composite Panel:

Titanium composite panel is used for facade cladding of office building, shopping mall, airport, train stations etc.
