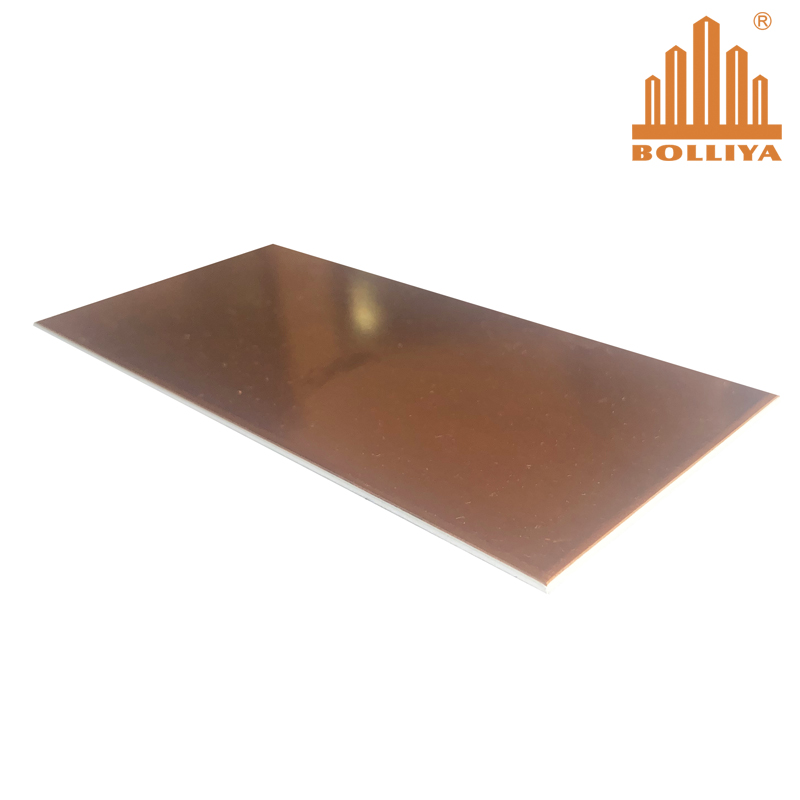

Dual Metal Copper Aluminium Panel (Cu + AL)

Model: Dual Metal Panel

Panel width： 600mm, 800mm, 1000mm, or customized widths.

Panel length： 2440mm, 3200mm, 4880mm, 5800mm or cut to size

Panel thickness： 1mm, 1.5mm, 2mm, 2.5mm 3mm

Copper skin thickness： 0.3mm, 0.5mm, 0.7mm

Alloy： Copper T2, Brass Cu62

Finishes： Natural Copper, Natural Brass, Pre-oxidized Copper, Patinated Copper

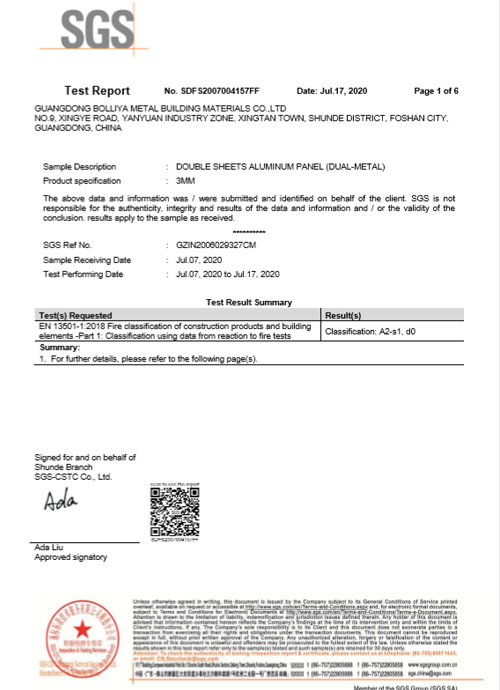

Fire reaction： FR A2

Product Description

Download

Inquiry

Dual Metal Copper Aluminium Panel

What is Dual Metal Copper Aluminium Panel?

Bolliya Dual Metal Copper Aluminium Panel is composed of one natural copper sheet laminated to a substrate of aluminium sheet, bonded by adhesive film and laminated through a continuous thermal lamination process. It's non-combustible material.

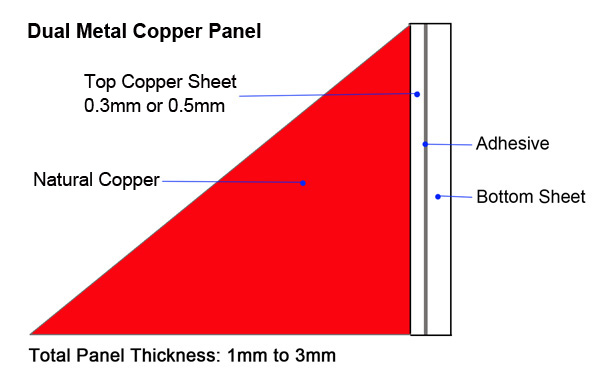

dual metal copper panel

Basic information of Dual Metal Copper Aluminium Panel:

Total Panel Thickness: From 1mm to 3mm. Recommended Thickness for facade cladding is 2mm, 2.5mm and 3mm.

Top skin: 0.3mm, 0.5mm or 0.7mm natural copper or brass sheet.

Bottom skin: Aluminium sheet with nominated thickness.

Panel width: 600mm, 800mm, 1000mm.

Panel length: 2440mm or cut to size.

Colors of Dual Metal Copper Aluminium Panel:

How is Dual Metal Copper Aluminium Panel in comparison of Solid Copper Panel?

1. Dual Metal Copper Aluminium Panel is easier to fabricate at job site, just same like ACP. It can be cut, grooved and fold easily at job site, very flexible to work with.

2. Dual Metal Copper Aluminium Panel is much cheaper when comparing to solid copper panel at same panel thickness. It can saves the cost around 50%.

3. Dual Metal Copper Aluminium Panel has a better panel strength and flatness comparing to solid copper panel at the same thickness.

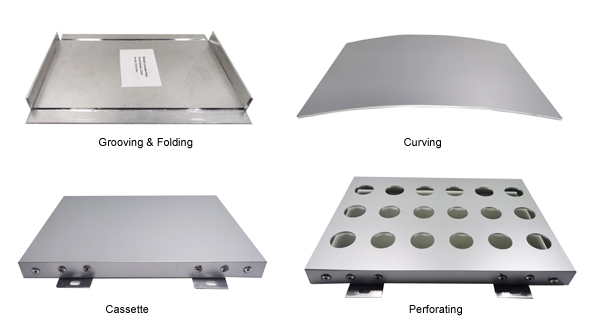

Fabrication of Dual Metal Copper Aluminium Panel:

Dual Metal Copper Aluminium Panel

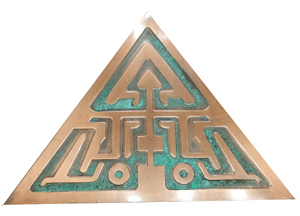

Dual Metal Copper Aluminium Panel can also be embossed to creat 3D look:

3D Dual Metal Copper Aluminium Panel

Applications of Dual Metal Copper Aluminium Panel:

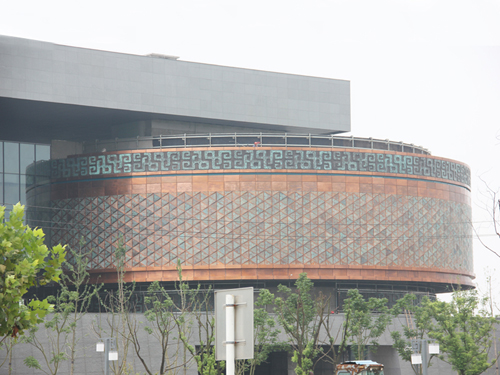

Dual Metal Copper Aluminium Panel is majorly used for facade cladding whereas a good wind resistance and high fire retardant property is required (it is classified under EN-13501-1, class A2-s1,d0), such as high rise buildings, hotels, hospitals, shopping malls, airports, stadiums, train stations etc.
